Featured HEIDENHAIN manuals

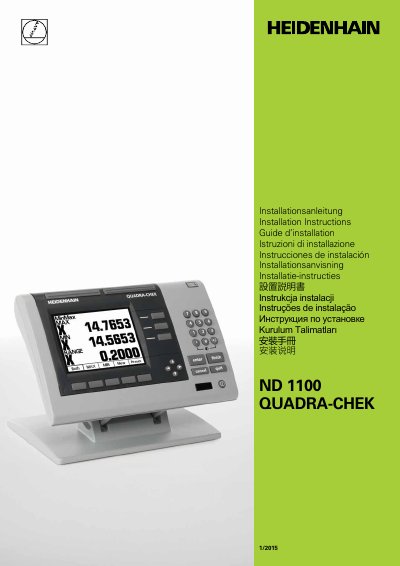

Heidenhain ND 1100 QUADRA-CHEK Installation Guide
This installation guide provides all necessary information for qualified personnel to install, connect, and commission the Heidenhain ND 1100 QUADRA‑CHEK. It includes safety warnings, technical data, and step‑by‑step instructions for mounting, wiring, and initial operation.
Key sections cover safety precautions, technical specifications, mechanical mounting, electrical connections (power, RS‑232, USB, touch‑probe interfaces), first power‑up, and basic maintenance such as fuse replacement. This manual is written in German.
Covers: Verwendung dieser Anleitung · Informationen zum Gerätetyp · Sicherheit · Technische Daten · Montage · Installation
Heidenhain MANUALplus 620 CNC Lathe Contour Processing Control System Manual
The MANUALplus 620 is a 2‑axis CNC control system for lathe contour processing, supporting spindle, C‑axis and power‑driven tools. It includes a 12.1‑inch color flat‑panel LCD, hard‑disk storage, and offers programming modes such as smartTurn, DIN, and ICP.
The document provides technical parameters, machine interfaces, user functions, software options, accessories, and service information, along with training contacts for Heidenhain dealers in China. This manual is written in Chinese.
Covers: Technical Parameters · Machine Interface · User Functions · Programming · Accessories · Installation
Heidenhain TNC 530 Klartext Programming Manual
This manual describes the Klartext programming environment for Heidenhain TNC 530 CNC controls. It covers the basics of program creation, editing, and execution, as well as the configuration of tool data and rotation parameters.
Key sections include programming and editing commands, basic rotation settings, adaptive feed control, diagnostics, and tool‑data management, enabling users to set up and operate the control efficiently. This manual is written in German.
Covers: Programming and editing · Basic rotation · Adaptive Feed Control · Diagnostics · Tool data · Klartext

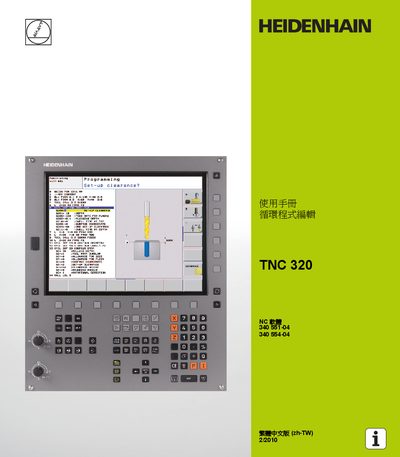

Heidenhain TNC 320 User Manual
This manual describes the features, software options, and safety information for the Heidenhain TNC 320 CNC controller. It includes setup clearance instructions, detailed descriptions of software functions (e.g., new features of version 340 55x‑04), and guidance on content‑level upgrades (FCL).
The document also lists contact details for technical support, safety symbols used throughout the manual, and references to related programming cycles and probe functions. It is intended for machine tool operators and programmers who need to configure and operate the TNC 320 system. This manual is written in Chinese.
Covers: Setup Clearance · TNC Model and Software Features · Software Options · New Software Functions · Content Level Upgrade (FCL) · Contact Information
Latest HEIDENHAIN manuals
Heidenhain ND 1100 QUADRA-CHEK Installation Guide
Installation Guide 118 pages · 9 MB · DEInstallation guide for the Heidenhain ND 1100 QUADRA-CHEK, covering mounting, wiring, safety, and first‑time setup.
Heidenhain MANUALplus 620 CNC Lathe Contour Processing Control System Manual
User Manual 48 pages · 2.3 MB · ZHThe Heidenhain MANUALplus 620 manual details specifications, interfaces, user functions and installation for the CNC lathe contour processing system.
Heidenhain TNC 530 Klartext Programming Manual
Programming Manual 16 pages · 4.1 MB · DEThe Heidenhain TNC 530 Klartext manual provides programming, editing, and operation instructions for the CNC control system.
Heidenhain TNC 320 User Manual
User Manual 435 pages · 9.2 MB · ZHThe Heidenhain TNC 320 User Manual provides programming, setup, and operation instructions for the TNC 320 CNC controller.
Which document do I need?
Installation Guide
Mounting, wiring and first power-up. Read it before the hardware goes in.
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Programming Manual
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in HEIDENHAIN manuals
What supply voltage range does the ND 1100 QUADRA‑CHEK accept?
It accepts AC 100 V to 240 V at 50 Hz to 60 Hz, with a maximum power consumption of 100 W.
How many fuses are required and what are their specifications?
Two interchangeable fuses are required, each rated at 1.6 A / 250 V, size 5 mm × 20 mm.
What display is used in the MANUALplus 620 system?
It uses a 12.1‑inch color flat‑panel LCD display.
From: Heidenhain MANUALplus 620 CNC Lathe Contour Processing Control System Manual
How many closed‑loop axes does the system support?
The system supports two closed‑loop axes (X and Z) and an optional C‑axis.
From: Heidenhain MANUALplus 620 CNC Lathe Contour Processing Control System Manual
How do you start a program on the TNC 530?
Use the BEGIN PGM command to start a program.
Which feature adjusts feed rate based on load?
The Adaptive Feed Control (AFC) feature provides load‑dependent feed rate adjustment.
