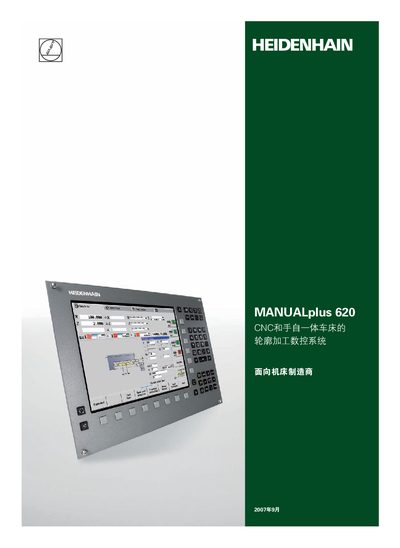

The Heidenhain MANUALplus 620 manual details specifications, interfaces, user functions and installation for the CNC lathe contour processing system.
The MANUALplus 620 is a 2‑axis CNC control system for lathe contour processing, supporting spindle, C‑axis and power‑driven tools. It includes a 12.1‑inch color flat‑panel LCD, hard‑disk storage, and offers programming modes such as smartTurn, DIN, and ICP.
The document provides technical parameters, machine interfaces, user functions, software options, accessories, and service information, along with training contacts for Heidenhain dealers in China. This manual is written in Chinese.
| Number of closed‑loop axes | 2 (X and Z, optional C‑axis) |
|---|---|
| Maximum spindle speed | 60 000 min⁻¹ |
| NC program storage | ≥15 GB hard‑disk space |
| Linear axis resolution | X‑axis 0.5 µm (1 µm diameter), Z‑axis 1 µm |
| C‑axis angular resolution | 0.001 ° |
| Power supply | 3 × 400 V~ |
| Operating temperature range | 0 °C – 40 °C (working), –35 °C – +65 °C (storage) |
It uses a 12.1‑inch color flat‑panel LCD display.
The system supports two closed‑loop axes (X and Z) and an optional C‑axis.
The working temperature range is 0 °C to 40 °C, and the storage range is –35 °C to +65 °C.
