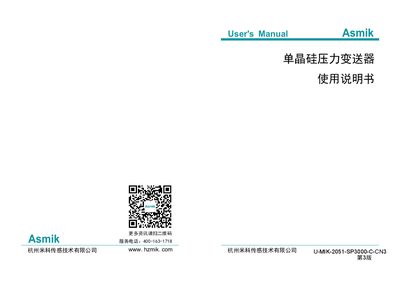

User manual for the U-MIK-2051-SP3000-C-CN3 pressure transmitter, covering features, wiring, operation, and maintenance.
This manual provides detailed information on the single‑crystal silicon pressure transmitter U‑MIK‑2051‑SP3000‑C‑CN3, including its functions, wiring diagrams, configuration steps, and troubleshooting procedures. It is intended for users who install, operate, and maintain the device in industrial process‑control applications.
The document includes a product overview, main features, technical specifications, installation instructions, button function descriptions, safety precautions, and warranty/service details. All sections are presented in Chinese with clear diagrams and step‑by‑step guidance. This manual is written in Chinese.
| Pressure range (differential) | -100 kPa to 3 MPa |
|---|---|
| Output signal | 4–20 mA, 4–20 mA + HART |
| Accuracy | ±0.075 %FS (typ.) |
| Ambient temperature range | -30 °C to 80 °C |
| IP protection rating | IP65 |
| Insulation resistance | ≥100 MΩ @ 500 VDC |
| Shell material | Die‑cast aluminum with epoxy coating |
The device provides a 4–20 mA analog output and also supports the HART digital communication protocol.
The hardware is warranted for 7 days with free maintenance or replacement for any confirmed defects; non‑custom products can be returned or exchanged within 7 days of purchase.
