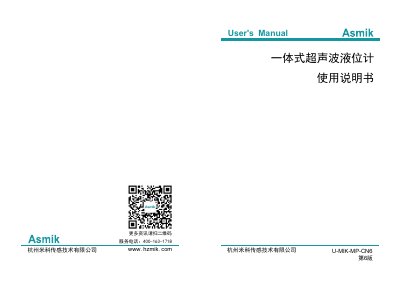

User manual for the U-MIK-MP-CN6 integrated ultrasonic level meter covering installation, operation, diagnostics and communication.
The U-MIK-MP-CN6 is an integrated ultrasonic level meter that measures liquid or solid level without contacting the medium. It offers a 2‑inch black‑white LCD, 4‑20 mA output, optional RS485 Modbus‑RTU communication and a relay output for alarm functions.
The manual provides a product overview, fixed‑installation guidelines, screen and button descriptions, an expert mode for advanced settings, fault analysis, warranty information and detailed Modbus register tables for integration with control systems. This manual is written in Chinese.
| Supply Voltage | 18‑28 VDC |
|---|---|
| Power Consumption | 5 W |
| Measurement Range | 5 m, 10 m (optional) |
| Accuracy | 0.5 %FS |
| Blind Zone | ≤0.35 m |
| Resolution | 1 mm or 0.1 %FS (max) |
| Display | 2‑inch 128×64 black‑white LCD |
| Current Output | 4‑20 mA, 0.2 %FS, max load 500 Ω |
| Communication | RS485 Modbus‑RTU (optional) |
| Relay Output | 2 NO contacts, 250 VAC/3 A max (optional) |
| Operating Temperature | -20 °C ~ 60 °C |
| IP Rating | IP65 |
| Languages | Chinese / English |
| Installation Method | Threaded or flange |
| Temperature Compensation | Automatic, with calibration |
| Measurement Variable | Level / Distance |
The device can measure up to 5 m, with an optional 10 m range.
It provides an isolated RS485 Modbus‑RTU interface (optional).
The unit consumes 5 W of power.
The accuracy is 0.5 % of full scale.
