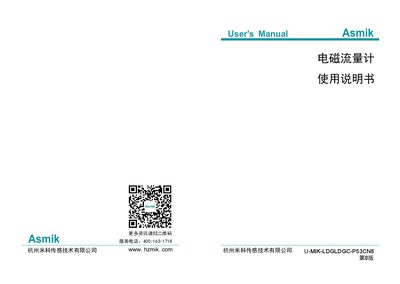

User manual with installation, wiring, operation and troubleshooting instructions for the Hangzhou Miko U-MIK-LDGLDGC-P53CN8 magnetic flowmeter.
This manual describes the features, installation steps, electrical connections, startup procedures, and operating instructions for the U‑MIK‑LDGLDGC‑P53CN8 magnetic flowmeter. It includes safety guidelines, wiring diagrams, configuration menus, and detailed troubleshooting information.
Key sections cover the measurement principle, sensor and converter structure, recommended pull‑up resistor for pulse output, protection ratings, and technical specifications such as pipe size range, temperature limits, and communication options. This manual is written in Chinese.
| Protection level | IP65 |
|---|---|
| Pipe diameter range | DN10~DN2000 |
| Operating temperature (integrated unit) | -10~55°C |
| Power consumption (max) | 15W |
| Supply voltage | 85~245VAC, 50/60Hz, 22VDC~26VDC |
| Output current range | 4~20mA |
Use a pull‑up resistor of 2 kΩ, 0.5 W on the POUT terminal and provide a 24 V DC supply as recommended.
The maximum error is ±0.5 % of the reading for flow speeds ≥1 m/s, and ±0.5 % ± 2 mm/s for flow speeds <1 m/s.
The sensor must be grounded to the measured medium with a resistance less than 10 Ω.
