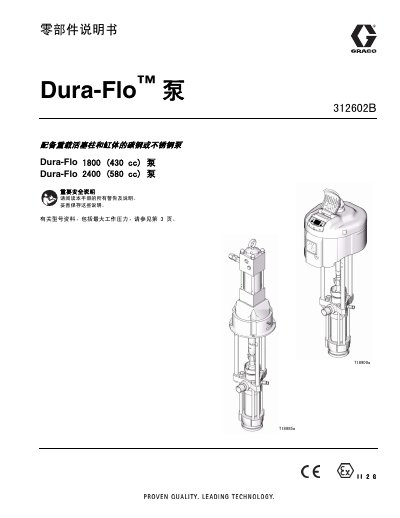

This manual provides parts lists, installation instructions, and maintenance procedures for the Graco Dura-Flo Pump 312602 B.
This document serves as a parts manual and service guide for the Graco Dura-Flo Pump 312602 B. It covers two specific pump configurations: one equipped with an NXT pneumatic motor and another with a Viscount hydraulic motor. The guide details the various models available within this series, including the Dura-Flo 1800 (430 cc) and Dura-Flo 2400 (580 cc), providing specific part numbers and specifications for each. This manual is written in Chinese.
| Maximum Working Pressure (12:1 Ratio) | 18.2 MPa, 82 bar (1190 psi) |
|---|---|
| Maximum Air Input Pressure | 0.7 MPa, 7.0 bar (100 psi) |
| Maximum Working Pressure (15:1 Ratio) | 10.9 MPa, 109 bar (1580 psi) |
| Maximum Working Pressure (23:1 Ratio) | 15.7 MPa, 157 bar (2270 psi) |
| Maximum Working Pressure (32:1 Ratio) | 20.9 MPa, 209 bar (3030 psi) |
The maximum working pressure for the 12:1 ratio model is 18.2 MPa, 82 bar (1190 psi).
The maximum air input pressure is 0.7 MPa, 7.0 bar (100 psi).
