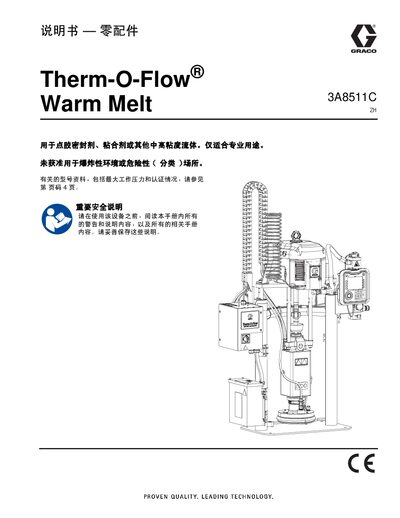

The Graco 3A8511C Warm Melt manual provides installation, operation, maintenance, and safety instructions for the hot‑melt dispensing system.
This manual covers safety warnings, proper grounding, and required precautions before installation or service of the Therm‑O‑Flow Warm Melt system. It includes detailed sections on installation, system setup, electrical requirements, and component identification.
The guide also explains normal operation, heating zone configuration, routine maintenance, diagnostics, and troubleshooting procedures, along with technical specifications and part numbers for replacement components. This manual is written in Chinese.
| Maximum fluid working temperature | 70 °C (158 °F) |
|---|---|
| Maximum work pressure | 36:1 – 3600 psi (24.8 MPa, 248 bar) |
| Maximum work pressure (high) | 68:1 – 5000 psi (34.4 MPa, 344 bar) |
| Air motor maximum speed | 60 rpm |
| Electrical requirement (heating, 5 gal/20 L) | 200–240 VAC, single‑phase, 50/60 Hz, 19 A |
A standard heating control box for a single system with a cold‑temperature pump provides 4 heating hose zones and 4 hose‑end zones.
The fluid can be heated up to 70 °C (158 °F).
It requires 200–240 VAC, single‑phase, 50/60 Hz, and 19 A.
