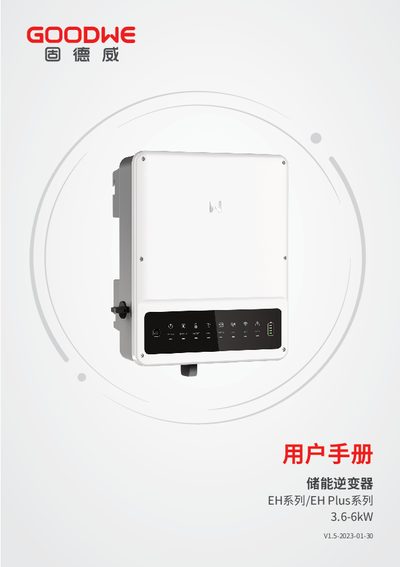

This user manual provides safety guidelines, installation, wiring, configuration, troubleshooting and technical data for GoodWe EH and EH Plus series…
The manual covers all aspects needed to install, commission and maintain the GoodWe EH/EH Plus storage inverters. It begins with safety precautions, product overview, and inspection/storage instructions before moving to detailed installation steps.
Key sections include electrical connection diagrams, start‑up procedures, system commissioning via the SolarGo app, regular maintenance, fault handling, and a full set of technical specifications for the 3.6 kW, 5 kW and 6 kW models. This manual is written in Chinese.
| Nominal Output Voltage | 230 V ±2 % |
|---|---|
| Maximum AC Current to Grid | 16 A / 21.7 A / 26.1 A |
| Maximum Efficiency | 97.6 % |
| Ingress Protection Rating | IP65 |
| Weight | 17 kg |
| Dimensions (W×H×D) | 354 mm × 433 mm × 147 mm |
| Operating Temperature Range | -25 °C to +60 °C |
Operators must wear safety shoes, protective gloves and insulated gloves during electrical connection work.
The AC side protection device (circuit breaker or fuse) must be rated larger than 1.25 times the inverter’s maximum AC output current.
No, the chassis protective earth cannot replace the AC output protective ground; both must be connected securely.
