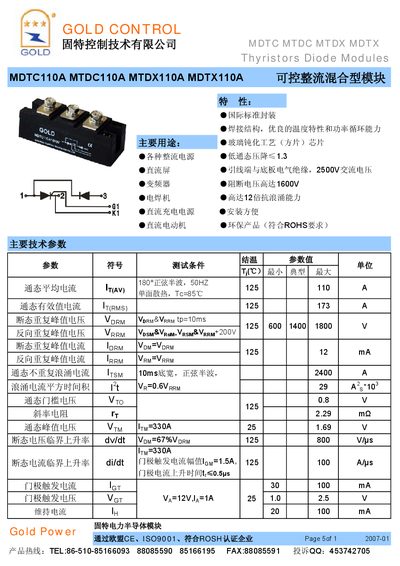

The GOLD CONTROL MDTC110A/MTDC110A/MTDX110A/MDTX110A controllable rectifier hybrid module datasheet provides features, specifications, installation and…
The MDTC110A, MTDC110A, MTDX110A and MDTX110A modules are controllable rectifier hybrid devices offered by GOLD CONTROL. They feature international standard packaging, welded construction, low forward voltage drop, high surge capability, and compliance with RoHS. Typical applications include glass passivation, various rectifier power supplies, inverters, welding machines, DC charging supplies, and motor drives.
The document lists technical parameters such as rated currents, voltage ratings, thermal resistance, and mechanical dimensions, as well as installation torque values and environmental operating limits. Guidance on mounting, heat‑sink preparation, and recommended torque for M5 and M6 fasteners is also provided to ensure reliable operation. This manual is written in Chinese.
| Rated forward voltage (VDRM) | 125 V |
|---|---|
| Junction temperature range | -40 °C to +125 °C |
| Insulation voltage | 2500 V AC |
| Thermal resistance junction‑to‑case (Rth j‑c) | 0.25 °C/W |
| Thermal resistance case‑to‑ambient (Rth c‑h) | 0.15 °C/W |
| Weight | 160 g |
| Dimensions (max) | 94 mm × 34 mm × 38 mm |
| Installation torque (M5 screw) | 3 N·m |
The module can operate from –40 °C to +125 °C junction temperature, and up to 150 °C for the rectifier mode.
Use a torque of 3 N·m for M5 screws and 4‑6 N·m for M6 screws when fastening the module to a heat sink.
The module is rated for 2500 V AC insulation voltage.
