The Godox YN565EX II flash light user manual provides safety warnings, features, quick start steps, installation, basic functions, specifications and…

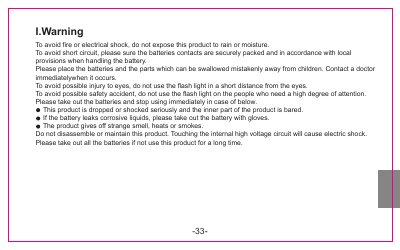

This manual explains safe handling of the YN565EX II flash, including battery safety, moisture protection and proper storage. It also details the flash’s features such as TTL, high‑speed recycling, wireless compatibility and advanced option settings.
Installation instructions cover battery insertion, mounting the flash on a camera hot shoe, and connecting external power packs. The guide then describes basic operation, button functions, zoom ranges, flash modes, and provides a full specifications table and troubleshooting tips for common issues.
| Guide Number | GN58 @ ISO100, 105mm |
|---|---|
| Flash Coverage | Auto, 24, 28, 35, 50, 70, 80, 105mm |
| Power Supply | 4 × AA batteries (Alkaline or Ni‑MH) |
| Recycle Time | Approx. 3 seconds |
| Flash Time | 1/200 s – 1/20000 s |
| Color Temperature | 5600 K |
| Dimensions | 60 × 190 × 78 mm (extended) |
| Net Weight | 380 g |
The flash recycles in approximately 3 seconds when using AA alkaline cells.
It uses four standard AA batteries, either alkaline or Ni‑MH, and they must be inserted with the correct polarity.
The guide number is GN58 at ISO 100 with a 105 mm focal length.
