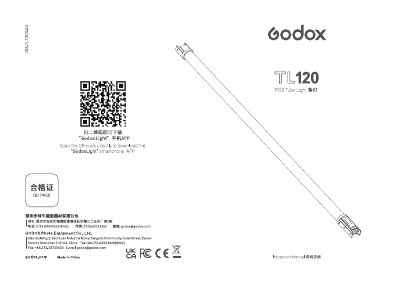

This manual introduces the Godox TL120 RGB Tube Light, a dual‑color temperature, high‑brightness LED light for photography, video and live streaming. It explains the main features, safety warnings, and how to set up power, wireless, Bluetooth and DMX control.
Detailed instructions cover turning the unit on/off, selecting color‑temperature, brightness, hue, saturation, and choosing from 39 scene‑effect modes. The guide also describes optional accessories, maintenance, warranty terms and technical specifications. This manual is written in Chinese.
| Model | TL120 |
|---|---|
| Battery capacity | 144V 5200mAh / 74.88Wh |
| Charger voltage / current | 20V / 4.8A |
| Color temperature range | 2700K~6500K |
| Dimming range | 0‑100% |
| RGB hue range | 0‑360° |
| 2.4 GHz wireless control distance | ≈50 m |
| Operating temperature range | -10 °C ~ 40 °C |
Press the power switch (船形开关) to turn the unit on or off; the LCD will show the current status.
In color‑temperature mode, press “+” or “‑” to change the temperature within the range 2700 K to 6500 K.
