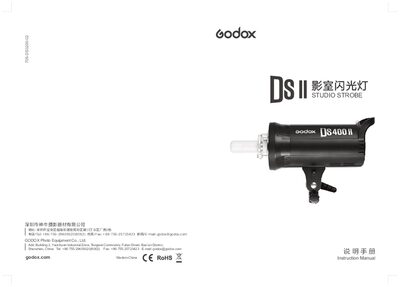

The Godox DS300 II and DS400 II studio strobe instruction manual covers setup, operation, safety, wireless control, and maintenance.
This manual provides detailed instructions for the Godox DS300 II and DS400 II studio strobes, including safety warnings, component descriptions, and connection procedures. It explains how to install the flash tube, use the modeling lamp, and adjust power output via the LCD panel.
Key features include built‑in 2.4 GHz wireless X system, 150 W modeling lamp, 50 power steps, memory function, and multiple triggering modes (sync cord, optical S1/S2, and wireless). The document also lists technical specifications, maintenance guidelines, and warranty information. This manual is written in Chinese.
| Color temperature | 5600 ± 200 K |
|---|---|
| Operating voltage | AC 110‑120 V ~ 60 Hz or AC 220‑240 V ~ 50 Hz |
| Recycle time | 1/2000 – 1/800 s |
| Dimensions (diameter × height × length) | 11.7 cm × 18.2 cm × 37 cm |
| Net weight | ≈ 1.7 kg (DS300 II), ≈ 1.9 kg (DS400 II) |
| Sync port type | Φ 3.5 mm plug |
| USB output | 5 V / 200 mA |
Allow the flash to cool for about 3 minutes before using it again.
Press the GR/CH button and the S1/S2 button simultaneously; the LCD will show <> indicating wireless is on.
The modeling lamp automatically switches off after 4 hours of continuous lighting.
