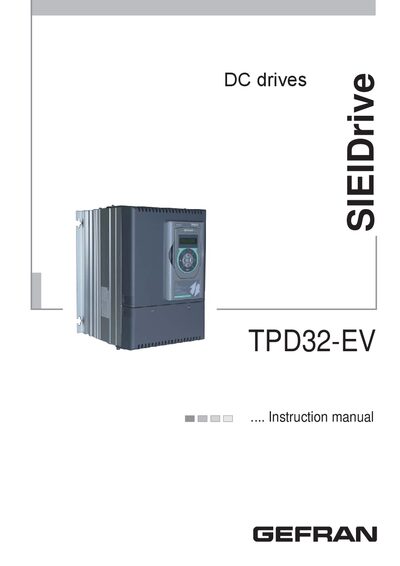

Gefran TPD32-EV Drive Instruction Manual

The Gefran TPD32-EV instruction manual provides safety guidelines, installation steps, wiring diagrams, and detailed specifications for the drive.

Brand: GEFRAN
Document type: User Manual
Language: English
Pages: 478
File format: PDF
File size: 6.6 MB
Published: 29 September, 2026
Updated: 29 September, 2026
MD5 checksum: 24361FDADCD3C6204CD451F0A11DAE51
PDF: Gefran TPD32-EV Drive Instruction Manual PDF

About this manual

This instruction manual describes the Gefran TPD32‑EV DC drive, covering safety precautions, component identification, and full technical specifications. It begins with safety instructions and a description of the converter’s function and dimensions.

The document then details installation guidelines, wiring procedures, RS485 interface, regulator configuration, and operation of functions such as speed control, PID tuning, and overload protection. It also includes tables for AC input voltages, output currents, and protection ratings, plus troubleshooting and maintenance notes.

What's inside

Safety Precautions
Description, Component Identification and Specifications
Installation Guidelines
Wiring Procedures
Converter Operation
Function Description
Options
RS485 Serial Interface
Specifications

Specifications

AC input voltage	3 x 230 V , 50/60 Hz (also 400‑690 V options)
Output voltage (UdN)	Direct voltage changing from 0… UdN
Output rated current (IdN)	20 … 3300 A
Protection degree	IP20 for types A, B, C; IP00 for types D, E

Frequently asked questions

What safety step must be taken before using the TPD32‑EV drive?

Read the safety instruction section carefully before using the product.

What is the output rated current range of the TPD32‑EV?

The drive can deliver an output current from 20 A up to 3300 A.

Which protection ratings apply to the different drive types?

Types A, B, C have IP20 protection, while types D and E have IP00.
