TK pressure transmitter is based on thick film technology, which can be used in long distance signal transmission or intelligent control system. TK pressure sensor is mainly used in oil, air or hydraulic circuits. It can also be used in technology or process testing fields.

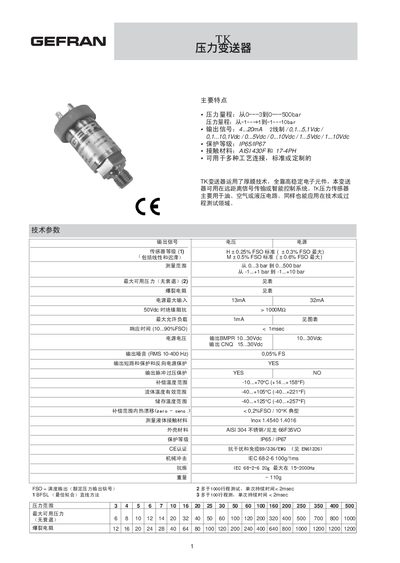

This manual describes the main features of the GEFRAN TK pressure transmitter, including its pressure ranges, output signals, and environmental ratings. It also lists the mechanical dimensions and available connection options for installation.
Technical data such as pressure range, output current and voltage, ingress protection, weight, and operating temperature are provided, along with accessory part numbers and wiring diagrams to aid in setup and maintenance. This manual is written in Japanese.
| Pressure range | 0 to 500 bar |
|---|---|
| Differential pressure range | -1 to +10 bar |
| Ingress protection | IP65 / IP67 |
| Weight | <110 g |
| Fluid temperature range | -40 to +105 °C |
The TK transmitter measures pressure from 0 to 500 bar (and -1 to +10 bar for differential measurement).
The device is rated IP65 and IP67 for protection against dust and water.
