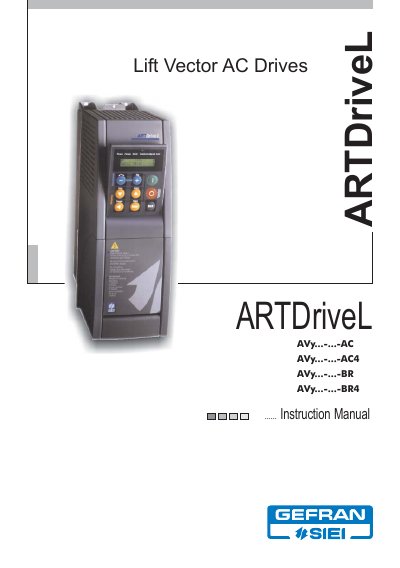

Instruction manual for Gefran ARTDriveL Vector AC Drives covering safety, installation, wiring, and technical specifications.
The Gefran ARTDriveL Vector AC Drives manual provides comprehensive safety instructions, inspection procedures, and mechanical installation guidelines. It details wiring connections, regulator card settings, and serial interface descriptions to ensure correct setup and operation.
Additional sections cover keypad operation, commissioning for various motor types, lift control sequences, parameter settings, troubleshooting, and EMC compliance. The document also lists environmental limits, protection ratings, and recommended installation practices.
| Ambient temperature (operation) | 0 … 40 °C (32 … 104 °F) |
|---|---|
| IP protection | IP20 / IP54 (cabinet with external heatsink) |
| Maximum installation altitude | Up to 1000 m (3280 ft) above sea level |
| Grounding requirement | Connect PE2 to protective ground and PE1 to chassis |
Connect the protective earth to the PE2 terminal and also to the chassis via the PE1 terminal, using a UL‑listed or CSA‑certified connector sized for the cable gauge.
The drive may be installed up to 1000 m (3280 ft) above sea level; for higher altitudes the rated current must be reduced by 1.2 % per 100 m.
