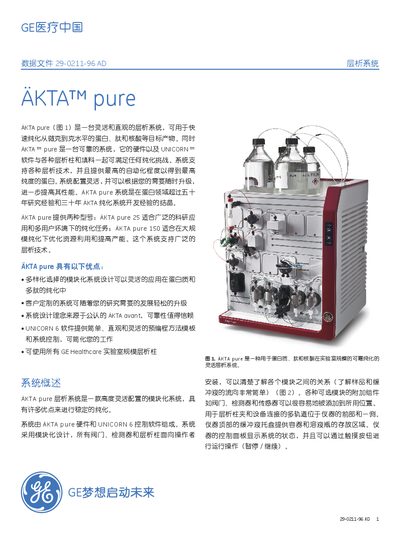

The GE Healthcare ÄKTA pure 25/150 chromatography system data sheet details specifications, modular options, and ordering information for protein, peptide…
The ÄKTA pure 25/150 is a flexible, modular laboratory‑scale chromatography system that combines robust hardware with UNICORN 6 software to support a wide range of purification techniques for proteins, peptides and nucleic acids. It offers two model sizes—25 for general research and multi‑user labs, and 150 for higher‑throughput production—both with interchangeable modules and optional accessories.
The data sheet lists key technical specifications such as system dimensions (535 × 630 × 470 mm), weight (up to 53 kg), pump pressure ranges (0‑20 MPa for 25, 0‑5 MPa for 150), flow‑rate capabilities, UV detector options, and a variety of optional valves, pumps, and fraction collectors. Ordering information and part numbers for standard and optional components are also provided. This manual is written in Chinese.
| System dimensions (W×H×D) | 535 × 630 × 470 mm |
|---|---|
| Maximum system weight | 53 kg |
| Pump pressure range (ÄKTA pure 25) | 0 to 20 MPa (2900 psi) |
| Flow‑rate range (ÄKTA pure 25) | 0.001 to 25 mL/min (up to 50 mL/min during column loading) |
| Standard mixer volume | 1.4 mL (optional 0.6 mL or 5 mL) |
| Power consumption | Typical 300 VA, energy‑saving 25 VA |
The ÄKTA pure 25 can operate up to 20 MPa (approximately 2900 psi).
The system is controlled by UNICORN 6 software.
Up to two UV detectors can be installed, either two U9‑L units or one U9‑L and one U9‑M.
The standard mixer volume is 1.4 mL, with optional 0.6 mL and 5 mL mixers.
