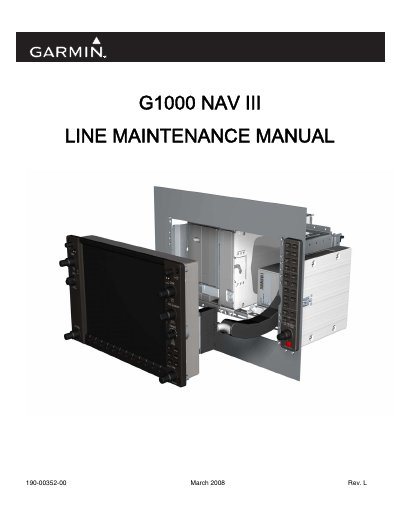

Garmin G1000 Nav III Line Maintenance Manual

About this manual

This Service Manual is intended for maintenance personnel working on the Garmin G1000 Nav III avionics suite. It covers safety precautions, export‑control requirements, and step‑by‑step instructions for equipment removal, installation, software uploading, configuration, testing, and periodic maintenance of all Nav III components such as the GDU 104X, GMA 1347, GIA 63/W, and others.

The manual also includes detailed information on database management, including update cycles for Jeppesen aviation, ChartView, obstacle, SafeTaxi, and FliteCharts databases, as well as guidance on handling mercury‑containing lamps and anti‑reflective lens cleaning.

What's inside

• General Description
• Troubleshooting
• Equipment Removal & Installation
• Uploading Software, Configuring, & Testing
• Final System Checkout
• Periodic Maintenance
• Appendix A – Pinout List
• Appendix B – System Software & Configuration

Specifications

Frequently asked questions

How often is the Jeppesen aviation database updated?

The Jeppesen aviation database is updated on a 28‑day cycle.

What safety precaution should be taken when cleaning the GDU 104X lens?

Clean the lens with a clean, lint‑free cloth and an eyeglass lens cleaner that is safe for anti‑reflective coatings.

What software version is required for the G1000 Nav III system?

The system requires software version 05 63.06 or later.
