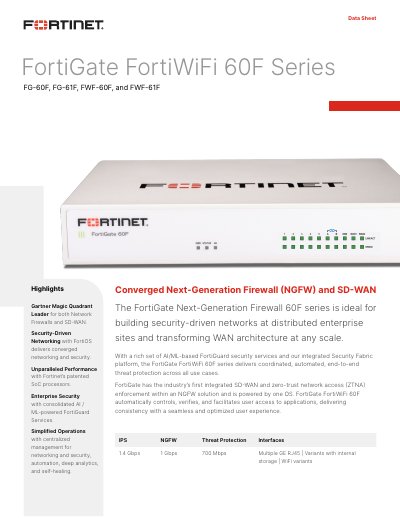

The Fortinet FortiGate FortiWiFi 60F Series data sheet provides specifications, hardware features, performance metrics, and subscription options for the…
The FortiGate FortiWiFi 60F Series combines next‑generation firewall (NGFW) and SD‑WAN capabilities in a compact desktop form factor. It targets distributed enterprise sites and offers integrated security services, AI/ML‑driven threat protection, and unified management through FortiOS.
Key hardware includes multiple GE RJ45 ports, FortiLink ports, USB and console interfaces, and optional wireless radios. Performance specifications list up to 21.4 Gbps IPS throughput, 2.41 Gbps NGFW throughput, and support for up to 700 000 concurrent TCP sessions. The device is fanless, operates from 12 VDC, and meets FCC, CE, UL and other certifications. Subscription bundles such as FortiGuard, FortiCare Elite, and FortiConverter extend functionality and support.
| IPS Throughput | 21.4 Gbps |
|---|---|
| NGFW Throughput | 2.41 Gbps |
| Firewall Throughput (1518/512/64 byte UDP packets) | 10/10/6 Gbps |
| Firewall Latency (64 byte UDP packets) | 3.3 µs |
| Concurrent TCP Sessions | 700,000 |
| Maximum FortiSwitches Supported | 24 |
| Maximum FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Power Consumption (Average / Maximum) – FG‑60F | 10.17 W / 12.43 W |
The device provides 1 USB port, 1 console port, 2 GE RJ45 WAN ports, 1 GE RJ45 DMZ port, 2 GE RJ45 FortiLink ports, and 5 GE RJ45 internal ports.
The firewall can achieve up to 10 Gbps for 1518‑byte UDP packets, 10 Gbps for 512‑byte packets, and 6 Gbps for 64‑byte packets.
