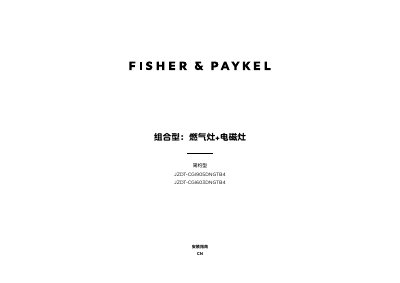

Fisher & Paykel CGI905/CGI603 Combo Cooktop Installation Guide

About this manual

This manual serves as an installation guide for the Fisher & Paykel JZDT-CGI905DNGTB4 and JZDT-CGI603DNGTB4 combination gas and induction cooktops. It outlines critical safety warnings regarding electrical shock, fire hazards, and proper ventilation before beginning the installation process. This manual is written in Chinese.

What's inside

• Safety Warnings
• Required Parts and Tools
• Appliance Dimensions
• Cutout Dimensions
• Clearance Requirements
• Installation Steps

Frequently asked questions

What is the minimum clearance required between the top of the tripod and a downward-facing combustible surface?

The minimum clearance required is 650 mm.

What is the maximum depth allowed for the overhead cabinet above the cooktop?

The maximum depth for the overhead cabinet is 600 mm.

What is the total width of the cutout required for the JZDT-CGI905DNGTB4 model?

The total cutout width for the JZDT-CGI905DNGTB4 model is 865 mm.
