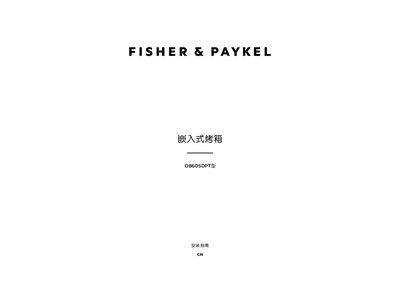

Installation guide for the Fisher & Paykel OB60SDPT built‑in oven, covering safety warnings, dimensions, wiring, installation steps and final checks.
This guide provides all required information to safely install the Fisher & Paykel OB60SDPT built‑in oven. It begins with essential safety warnings, such as disconnecting the main power, ensuring proper grounding, and using a qualified electrician for all electrical work.
The document then details the oven’s physical dimensions, required cabinet clearances, wiring specifications, step‑by‑step installation procedures, and a final inspection checklist to verify correct positioning, grounding, and operation before handing the appliance over to the customer. This manual is written in Chinese.
| Oven total height | 598 mm |
|---|---|
| Oven total width | 596 mm |
| Oven total depth (excluding handle and knob) | 565 mm |
| Back panel height | 575 mm |
| Back panel width | 556 mm |
| Back panel depth | 545 mm |
