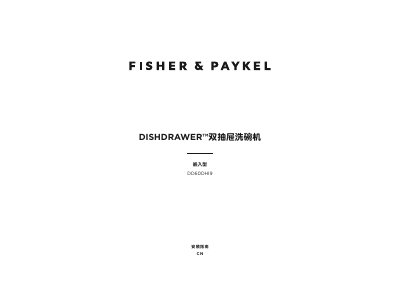

Step‑by‑step instructions, safety warnings, dimensions and water‑electric connections for installing the Fisher & Paykel DD60DHI9DISHDRAWER DishDrawer…
This installation guide provides detailed procedures for fitting the Fisher & Paykel DD60DHI9DISHDRAWER DishDrawer dishwasher, including mandatory safety warnings such as disconnecting power, proper grounding, and avoiding extension cords. It also outlines the required tools, parts, and the need for a qualified technician.
The document lists the appliance’s exact dimensions, the minimum cabinet opening sizes, water‑pipe and power‑cord lengths, and the steps for connecting water and electricity. A final checklist ensures the unit is correctly secured, the drawers operate smoothly, and the system is tested before use. This manual is written in Chinese.
| Total Height | 820‑880 mm |
|---|---|
| Total Width | 599 mm |
| Total Depth | 571 mm |
| Door Panel Ventilation Gap | 8 mm |
| Power Cord Length | 1650 mm |
The power cord length is specified as 1650 mm.
