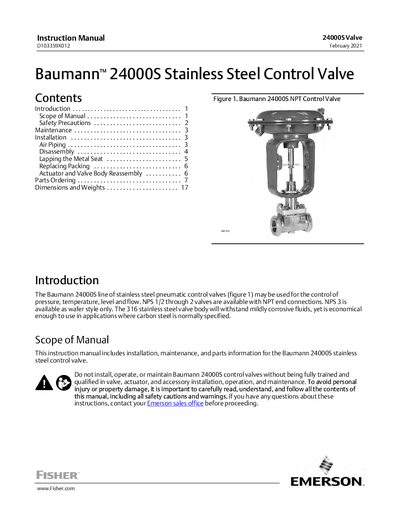

Fisher Baumann 24000S Stainless Steel Control Valve Instruction Manual

This manual covers installation, maintenance, disassembly, and parts ordering for the Fisher Baumann 24000S stainless steel pneumatic control valve.

Brand: Fisher
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 217 KB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: AB48458621F9E39E7A17E78E577674DE
PDF: Fisher Baumann 24000S Stainless Steel Control Valve Instruction Manual PDF

About this manual

The document serves as an instruction manual for the Baumann 24000S line of stainless steel pneumatic control valves. It details applications for controlling pressure, temperature, level, and flow in NPS sizes from 1/2 through 3. The valve body is constructed of 316 stainless steel to withstand mildly corrosive fluids while remaining economical.

What's inside

Introduction
Safety Precautions
Maintenance
Installation
Air Piping
Disassembly
Lapping the Metal Seat
Replacing Packing
Actuator and Valve Body Reassembly
Parts Ordering

Specifications

Material	316 stainless steel
Available Sizes	NPS 1/2 through 2, NPS 3 wafer style only
End Connections (Sizes 1/2-2)	NPT

Frequently asked questions

What fluids is the Baumann 24000S valve body designed to withstand?

The 316 stainless steel valve body will withstand mildly corrosive fluids.

What air pressure limit should be observed for the actuator?

Air pressure must not exceed 2.5 bar (35 psig).
