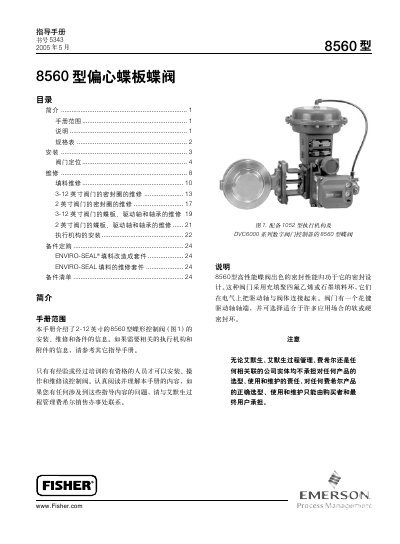

Fisher 8560 Butterfly Valve Service Manual

About this manual

The Fisher 8560 eccentric butterfly valve service manual covers the full range of valve sizes from 2‑12 inches, detailing installation procedures, actuator mounting, and safety precautions. It includes detailed specifications such as pressure ratings, temperature limits, seal options, and flow characteristics.

The document also provides step‑by‑step maintenance and repair instructions, including seal and packing adjustments, actuator installation, and a comprehensive spare‑parts list. All procedures emphasize safe handling, proper grounding in hazardous environments, and compliance with relevant standards (ASME B16.34, API 609, MSS‑SP‑68). This manual is written in Chinese.

What's inside

• Manual Scope
• Specifications
• Installation
• Valve Positioning
• Maintenance
• Seal Repair
• Actuator Installation
• Spare Parts Ordering
• ENVIRO‑SEAL Packing Kit
• Parts List

Specifications

Frequently asked questions

What valve sizes are covered by the Fisher 8560 model?

The 8560 valve is offered in sizes from 2 inches up to 12 inches, with clamp‑type or single‑flanged connections depending on the size.

Which seal materials can be used with the 8560 valve?

The valve can be equipped with PTFE, enhanced PTFE, UHMWPE, NOVEX metal, or Phoenix III metal seals, providing up to VI‑level bidirectional sealing.
