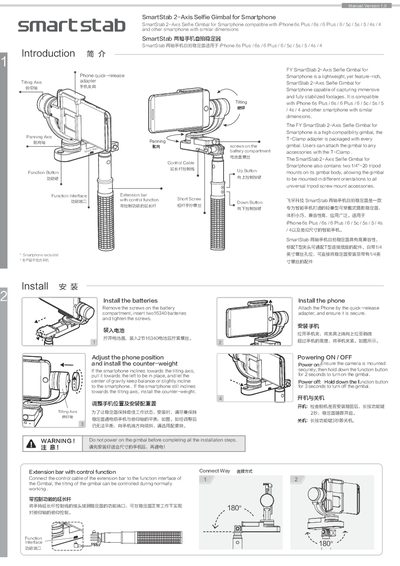

The Feiyu SmartStab 2-Axis Selfie Gimbal User Manual provides assembly, operation, and specifications for the lightweight smartphone stabilizer.
The SmartStab 2-Axis is a lightweight, wearable gimbal designed for smartphones such as the iPhone 6 series and other similarly sized devices. It features high compatibility, a T‑Clamp adapter, and dual 1/4‑20 tripod mounts for versatile mounting.
The manual explains how to install the batteries, attach the phone, power the device, and use the control buttons and extension bar. It also lists technical specifications, safety warnings, and troubleshooting steps to ensure reliable operation. This manual is written in Chinese.
| Weight (without batteries and phone) | 366 g |
|---|---|
| Tilting angle range | 320° |
| Overload current protection | 800 mA |
| Panning speed | 3°/s – 150°/s |
| Panning angle range | 320° |
| Working voltage | 6.0 V – 9.0 V |
| Battery type | Two 16340 rechargeable cells |
| Battery weight | 52 g |
| Counter‑weight weight | 6 g |
Press and hold the function button for 3 seconds; the gimbal will shut down.
Insert two 16340 rechargeable batteries into the battery compartment and secure the cover.
After the gimbal has been powered on for eight seconds, adjust the tilting angle to the desired position and hold it for 0.5 seconds to lock.
