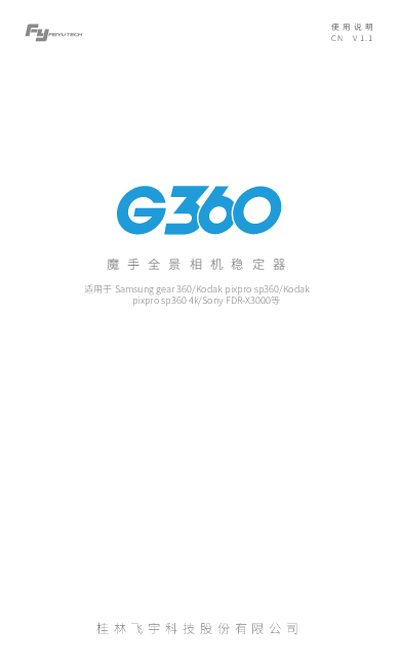

This manual provides a complete guide to the Feiyu Panoramic Camera Stabilizer, a gimbal designed for 360° cameras such as Samsung Gear 360, Kodak Pixpro SP360 and Sony FDR‑X3000. It covers product overview, installation steps, balance adjustment, and safety warnings.
Key sections include a getting‑started guide for battery installation and camera mounting, detailed descriptions of yaw‑follow and lock modes, firmware upgrade procedures via the Feiyu ON app, and a full list of technical specifications. The document also contains troubleshooting tips and warranty information. This manual is written in Chinese.
| Pitch angle range | 360° |
|---|---|
| Roll angle range | 100° |
| Yaw angle range | 360° |
| Pitch follow rate (min) | 2°/s |
| Yaw follow rate (min) | 3°/s |
| Theoretical endurance time | 6 hours |
| Weight (without battery, camera, counterweights) | 360 g |
| Compatible cameras | 1/4‑inch thread, 100–300 g |
Open the handle, insert one 22650 battery, and tighten the screw.
Press the function key once to toggle between yaw‑follow mode and lock mode.
Connect the stabilizer to the Feiyu ON app via Bluetooth and follow the on‑screen instructions to perform the firmware upgrade.
The pitch and yaw axes each rotate up to 360°, while the roll axis rotates up to 100°.
