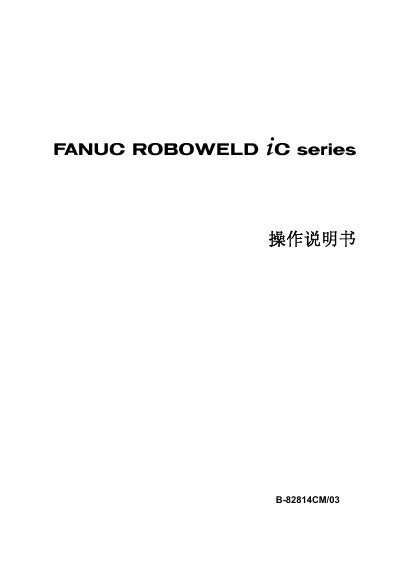

The FANUC ROBOWELD +C robot operator's manual provides safety guidelines, setup, operation, maintenance, and troubleshooting instructions.
This manual explains how to safely use the FANUC ROBOWELD +C welding robot. It emphasizes reading the FANUC Robot Safety Handbook, wearing required protective equipment, and following training requirements before operating the robot.
The document covers the robot’s overall structure, wiring, welding power‑source setup, programming, operation procedures, routine inspections, part replacement, and detailed fault‑diagnosis steps. This manual is written in Japanese.
| Flexible conduit length | 4.5 m (model A05B-1291-H401) |
|---|---|
| Drive roller thickness | 0.9 mm (iron, model A05B-1291-H251) |
| Welding torch model | BINZEL ABIROB 350GC-30S (air‑cooled) for ROBOWELD 100 iC/H |
