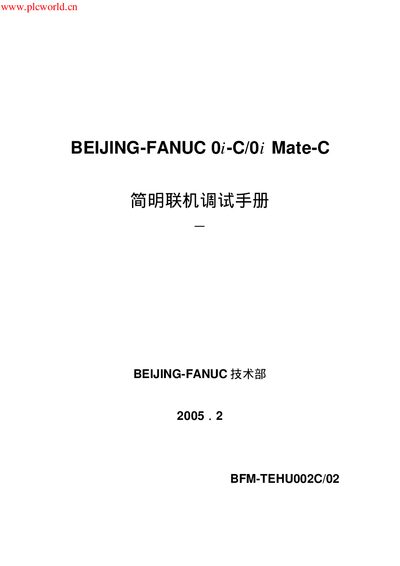

FANUC 0iC/0i Mate-C CNC Debugging Manual

About this manual

The manual provides a concise guide for setting up and debugging the FANUC 0iC/0i Mate-C CNC system. It details hardware connections between the controller, amplifiers, motors, power supplies and external devices such as RS232 and storage cards.

It also explains system parameter configuration, servo parameter initialization and optimization, PMC ladder‑logic conversion, rigid tapping programming, and spindle orientation procedures, with notes on wiring safety and troubleshooting. This manual is written in Chinese.

What's inside

• Hardware Connection
• System Parameter Settings
• Servo Parameter Adjustment
• PMC Debugging Steps
• Rigid Tapping Debugging
• Spindle Orientation
• Storage Card Usage
