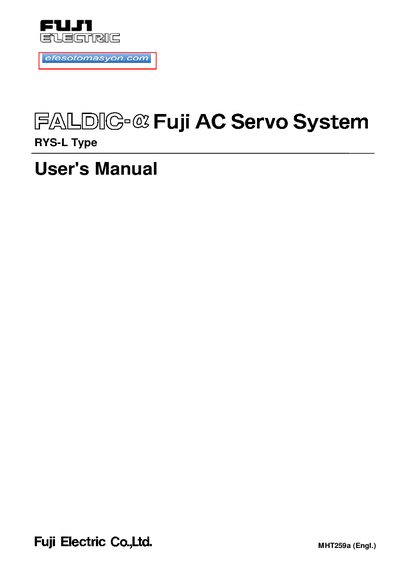

The Faldic MHT259a manual provides safety instructions, specifications, installation, wiring, and operation details for the RYS‑L type AC servo system.
This manual covers safety instructions, system outline, and detailed specifications for the Faldic MHT259a AC servo system, including motor power ranges, encoder resolution, and protection ratings. It also describes installation steps, terminal diagrams, wiring layouts, and peripheral device options.
Further sections explain control functions (RYS‑V, RYS‑L, RYS‑R), parameter setting procedures, keypad panel operation, positioning data configuration, test‑run procedures, and inspection and maintenance guidelines. Appendices provide model selection, program examples, and symbol definitions.
| Motor power output | 0.1 to 5 kW |
|---|---|
| Rated torque (0.1 kW motor) | 0.318 N·m |
| Enclosure protection | IP55 (optional IP67) |
| Encoder resolution | 65536 pulses/rev |
| RS485 transmission rate | 9600, 19200, 38400 bps |
The maximum command value is ±79,999,999.
Turn off power and wait at least five minutes before inspection.
Supported speeds are 9600, 19200, and 38400 bps.
The motor enclosure is rated IP55, with optional IP67.
