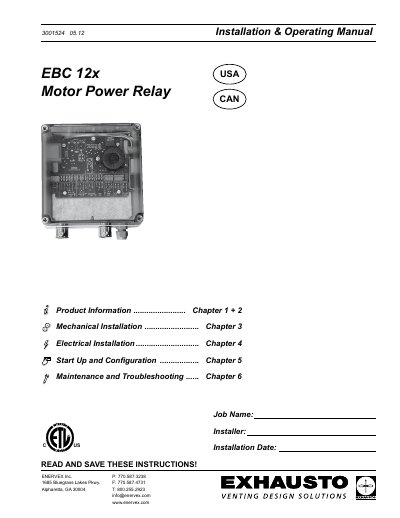

Exhausto EBC 12x Motor Power Relay Installation & Operating Manual

Installation and operating manual for the Exhausto EBC 12x Motor Power Relay, covering mechanical/electrical installation, startup configuration, and…

Brand: Exhausto
Document type: User Manual
Language: English
Pages: 12
File format: PDF
File size: 1022 KB
Published: 17 October, 2026
Updated: 17 October, 2026
MD5 checksum: B67AEBC876BF50E61B03A162AD3E3249
PDF: Exhausto EBC 12x Motor Power Relay Installation & Operating Manual PDF

About this manual

This manual provides instructions for installing and operating the EXHAUSTO EBC 12x Motor Power Relay. The device is designed to work with EXHAUSTO control panels (EBC 10, 12, 14, MEC 18, and EBC 30) to operate multiple single-phase intake or exhaust fans by acting as an external motor speed control.

What's inside

Product Information
Specifications
Mechanical Installation
Electrical Installation
Connecting to Main Control
Start Up and Configuration
Maintenance and Troubleshooting

Specifications

Power Supply	1x120V AC
Operating Temperature	-4 to 122°F / -20 to 50°C
Dimensions (A x B x C)	6.9 in x 6.9 in x 3.8 in
Weight	2.8 lbs / 1.3 kg

Frequently asked questions

What is the function of the EBC 12x Motor Power Relay?

It is used in conjunction with an EXHAUSTO Control Panel to operate multiple single-phase intake or exhaust fans by acting as an external motor speed control.

Which EXHAUSTO controls are compatible with the EBC 12x?

Compatible controls include the EBC 10, EBC 12, EBC 14, MEC 18, and EBC 30.

What is the maximum amperage draw for a single EBC 12x unit?

The maximum total amperage draw per unit is 6.0 A when connecting multiple fans.
