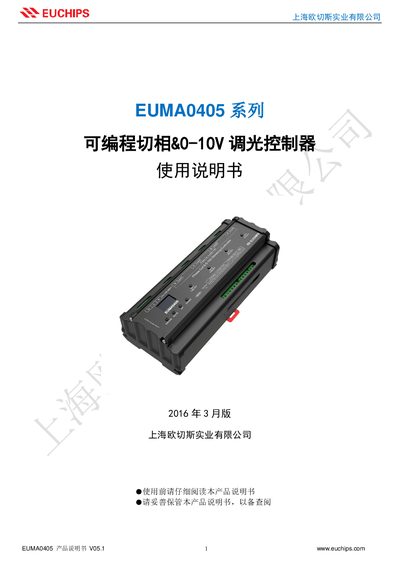

The Euchips EUMA0405 manual explains features, technical specs, wiring, LCD interface, control modes, and event programming for the programmable phase‑cut…
This manual provides a complete overview of the EUMA0405 series programmable phase‑cut and 0‑10V dimmer controller, including its MOS‑FET based output stage, supported control protocols (DMX‑512/RDM, DALI, EU‑BUS) and manual operation. It describes the LCD menu system, key functions, and how to configure control and output modes.
Detailed sections cover hardware interfaces, wiring diagrams, emergency‑switch operation, system settings such as time and backlight, and step‑by‑step instructions for creating and managing up to eight timed events. Application examples illustrate typical lighting scenarios for venues like hotels, schools, and conference rooms. This manual is written in Chinese.
| Input voltage | 100-240VAC |
|---|---|
| Output channel max current | 5A per channel (4 channels) |
| DC 0‑10V signal max current | 20mA per channel (4 channels) |
| Device dimensions | 222.5 × 93.4 × 63.2 mm |
| Weight | 975 g |
| Operating temperature | -20 °C to 50 °C |
| Maximum surge current per channel | 100 A |
The system can store up to eight events.
When the backlight is ON, the LCD stays lit for 60 seconds of inactivity, then the display goes to sleep mode.
Each channel can handle up to 5 A of load current.
The time can be set via the System Setting → Time Setting menu (available on the DDLT version).
