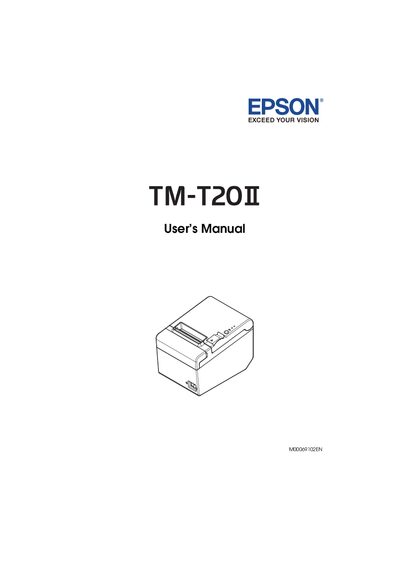

The Epson TM‑T20II thermal printer user manual provides safety guidelines, installation steps, operation instructions, and specifications.
This manual covers important safety information, unpacking details, part names, and how to connect power and interface cables for the TM‑T20II printer. It also explains installation options, including horizontal, vertical, and wall‑mount configurations.
Later sections describe cleaning procedures for the printer case and thermal head, provide technical specifications such as printing speed and power consumption, and give disposal instructions in accordance with the WEEE directive.
| Printing speed | 200 mm/s max.; 53.3 lps |
|---|---|
| Paper width | 80 mm and 58 mm (with guide plate) |
| Interface options | Serial RS‑232, Ethernet 10BASE‑T/100BASE‑TX, USB 2.0 (Type B) |
| USB compliance | USB 2.0 |
| Sleep mode power consumption (AC 230 V/50 Hz) | 1.2 W |
| Overall dimensions | 140 × 199 × 146 mm |
| Weight | Approx. 1.7 kg |
| Current consumption (24 V) | 1.5 A |
| Operating temperature | 5 °C to 45 °C |
In sleep mode the printer uses 1.2 W when powered from AC 230 V/50 Hz.
