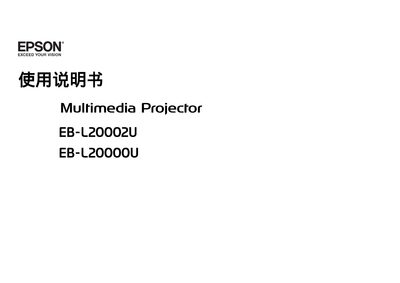

The Epson EB-L20002U/EB-L20000U projector user manual provides safety guidelines, installation steps, operation instructions, and technical specifications.
This manual covers safety warnings, proper installation (including ceiling mounting and required brackets), and handling of power and ventilation to prevent fire or injury. It also explains remote‑control functions, lens calibration, image adjustment, and network configuration.
Detailed sections describe supported input resolutions, laser light source specifications, power requirements, and maintenance procedures such as filter replacement and cleaning. The document includes a full list of technical specifications for the EB‑L20002U and EB‑L20000U models. This manual is written in Chinese.
| Dimensions (W×H×D) | 620 mm × 280 mm × 720 mm |
|---|---|
| LCD panel size | 1.03 inches |
| Resolution | WUXGA (1920 × 1200) |
| Light source | Laser diode |
| Light output power | 488 W |
| Laser lifespan (extended mode) | ≈43,000 h |
| Power supply (100‑120 V) | 100‑120 V AC ±10 % 50/60 Hz, 12.0 A |
| Power consumption (100‑120 V) | 1,178 W |
| Operating temperature | 0 °C to +50 °C |
| Storage temperature | -10 °C to +60 °C |
Yes, the projector can be ceiling‑mounted, but you must use a proper Epson ceiling‑mount bracket and follow the safety warnings.
Only the specified AC voltage should be used: 100‑120 V or 200‑240 V, matching the power specifications in the manual.
