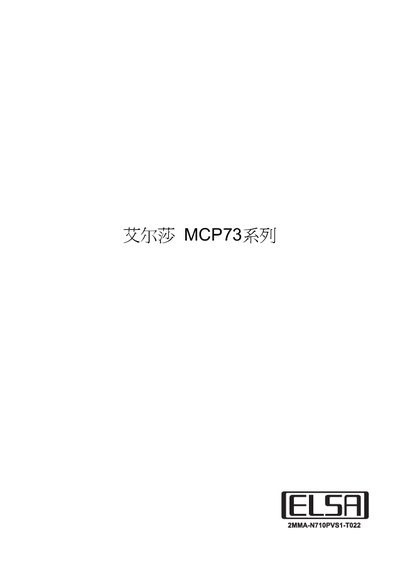

The ELSA MCP73 Motherboard User Manual provides installation, BIOS setup, and hardware configuration instructions.
This manual describes the features of the ELSA MCP73 motherboard, including support for Intel LGA775 65 W CPUs, FSB 1333 MHz, DDR2‑800 MHz memory up to 4 GB, PCI Express x16, DVI and USB 2.0 interfaces. It also outlines the BIOS functions and system health monitoring capabilities.
The document is organized into sections covering an introduction, detailed installation steps for the CPU and memory, BIOS configuration, chipset settings, PCI configuration, and troubleshooting. It includes a parts list and safety information for proper setup and use. This manual is written in Chinese.
| CPU Socket | Intel LGA775 65 W |
|---|---|
| Front Side Bus | 1333 MHz |
| Memory Type | DDR2‑800 MHz |
| Maximum Memory | 4 GB |
| USB Ports | USB 2.0 |
The MCP73 supports Intel LGA775 processors with a 65 W power rating.
It supports DDR2‑800 MHz memory up to a maximum of 4 GB.
Section 3.3 of the manual covers BIOS function settings and configuration.
