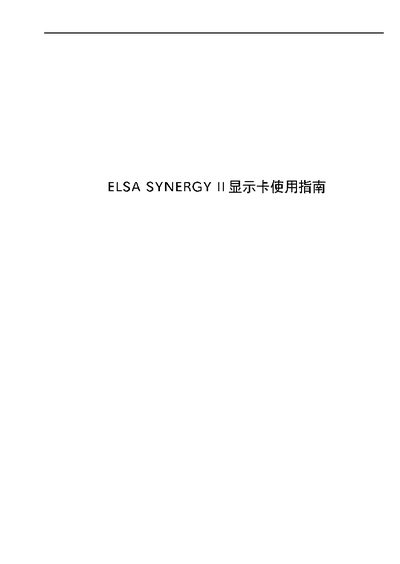

This manual covers the features and specifications of the ELSA SYNERGY II graphics card, including supported operating systems, memory configurations, and compliance with CE and FCC regulations. It also details safety precautions and recommended installation procedures.
The guide walks users through hardware installation, software setup from the WINNERware CD, and configuration of display settings via the Windows control panel. Troubleshooting tips and performance tuning advice are included for optimal operation. This manual is written in Chinese.
| Memory | 16/32 MB, up to 128 MB AGP |
|---|---|
| Maximum Clock Speed | 300 MHz |
| Supported Operating Systems | Windows 95, Windows 98, Windows NT 4.0 |
The card works with Windows 95, Windows 98, and Windows NT 4.0.
It requires 16 MB or 32 MB of memory and can use up to 128 MB on an AGP board.
Insert the card into an AGP slot, secure it with screws, and follow the hardware installation steps described in the manual.
Handle the card with anti‑static measures, avoid touching the IC pins, and ground yourself before installation.
