Technical specifications and ratings for ELNA's LP5 series large‑capacitance aluminum electrolytic capacitors.

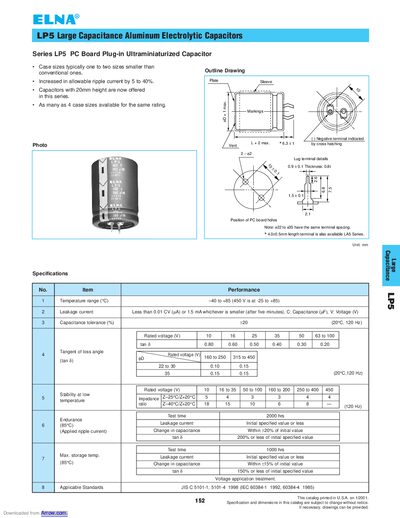

The ELNA LP5 series offers large‑capacitance aluminum electrolytic capacitors in a compact form factor. The catalog lists a wide range of voltage ratings, case sizes, and performance parameters for each model.
Key data include temperature range, leakage current limits, capacitance tolerance, loss‑angle tangent, and applicable industry standards. Detailed tables provide dimensions, ESR, and allowable ripple current for each voltage and capacitance combination.
| Temperature range | –40 to +85 °C |
|---|---|
| Leakage current | Less than 0.01 CV (µA) or 1.5 mA |
| Capacitance tolerance | ±20 % |
| Applicable standards | JIS C 5101‑1, 5101‑4 1998 (IEC 60384‑1 1992, 60384‑4 1985) |
| Tangent of loss angle (tan δ) | Specified per voltage rating |
They are rated for –40 °C to +85 °C (450 V rating applies from –25 °C to +85 °C).
Leakage current must be less than 0.01 CV (µA) or 1.5 mA, whichever is smaller, after five minutes.
Capacitance tolerance is ±20 % measured at 20 °C, 120 Hz.
They conform to JIS C 5101‑1, 5101‑4 1998 and IEC 60384‑1 1992, 60384‑4 1985.
