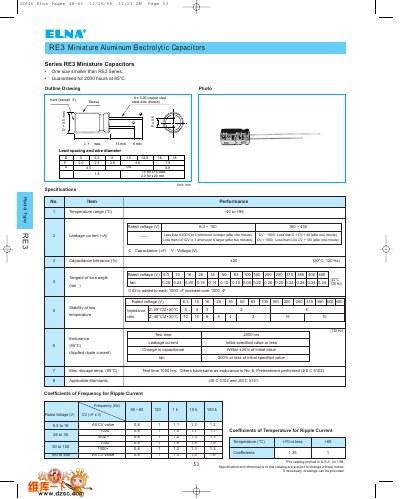

This document describes the features and characteristics of the RE3 series miniature aluminum electrolytic capacitors. It includes information on frequency coefficients, temperature coefficients, capacitance tolerance, tangent of loss angle, and stability.
The document provides a comprehensive overview of the Elna RE3 series miniature aluminum electrolytic capacitors. It includes performance data such as frequency coefficients, temperature coefficients, and stability at low temperatures. The catalog specifies that these components are guaranteed for 2000 hours at 85°C and adhere to JIS C 5102 and JIS C 5141 standards.
| Temperature range | -40 to +85 °C |
|---|---|
| Capacitance tolerance | ±20% |
| Endurance test time | 2000 hrs. |
| Applicable Standards | JIS C 5102 and JIS C 5141 |
The capacitors are guaranteed for 2000 hours at 85°C.
The standard ratings note specifies an allowable ripple current of 120 Hz at 85°C.
