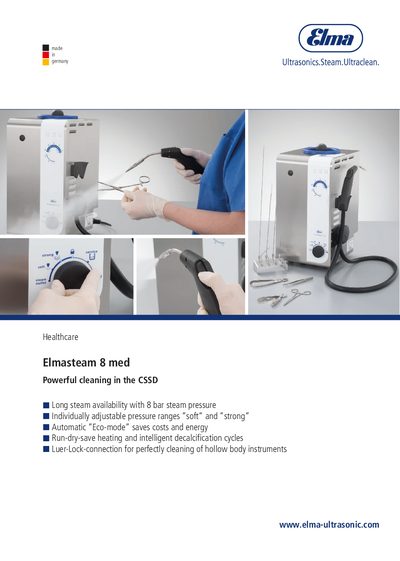

The Elma 8 med steam jet cleaner provides adjustable 4‑8 bar steam pressure for pre‑cleaning medical instruments.
The Elma 8 med is a steam jet cleaner designed for the healthcare sector to pre‑clean hollow‑body instruments, burrs, drills and electro‑surgical tools. It offers individually adjustable “Soft” (4‑6 bar) and “Strong” (6‑8 bar) pressure modes, an Eco‑mode, run‑dry protection and an integrated decalcification programme.
The unit is supplied with a range of accessories such as an adapter set, steam absorber, particle filter, tweezers, maintenance hose and optional compressed‑air function. Technical data include a 220‑240 V mains, 3120 W power consumption, 8 bar operating pressure and a 5 L pressure tank. A three‑year warranty is provided for proper use.
| Mains voltage | 220 - 240 V |
|---|---|
| Mains frequency | 50 / 60 Hz |
| Max power consumption | 3120 W |
| Steam temperature in tank | 185 °C |
| Steam temperature at nozzle | 160 °C |
| Operating pressure | 8.0 bar |
| Pressure tank volume | 5.0 L |
| Max filling volume | 3.8 L |
| Dimensions (W×D×H) | 285 × 350 × 520 mm |
| Weight (empty) | 20.0 kg |
| Medical device class | Class 1 |
It provides a “Soft” cleaning mode with 4‑6 bar pressure and a “Strong” mode with 6‑8 bar pressure.
The delivery includes a steam absorber, optional compressed‑air function, an 8‑part adapter set, canister with level indicator, particle filter, tweezers, maintenance hose, rinsing set, extra tank cap and a universal top for the handpiece.
It comes with a three‑year warranty when used according to the operating manual.
