Elmasonic S 900 H is an ultrasonic cleaning unit produced by Elma company. It has a sound wave frequency of 37 kHz and the cleaning tank is made of corrosion-resistant steel. The operating panel is equipped with a LED display that can set the cleaning time and temperature.

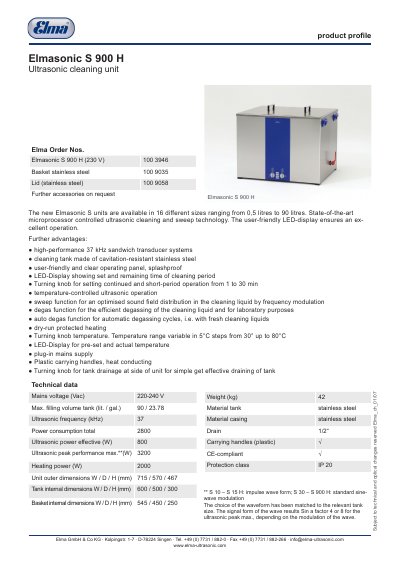

This document provides a product profile for the Elma Elmasonic S 900 H, a high-performance ultrasonic cleaning unit. It features state-of-the-art microprocessor-controlled technology with a user-friendly LED display and a cavitation-resistant stainless steel tank with a maximum filling volume of 90 liters.
Key features include a 37 kHz sandwich transducer system, temperature-controlled operation up to 80°C, and a sweep function for optimized sound field distribution. The unit also offers a degas function for laboratory purposes and is protected against dry-run heating.
| Mains voltage | 220-240 V |
|---|---|
| Weight | 42 kg |
| Max. filling volume | 90 / 23.78 lit. / gal. |
| Material tank | stainless steel |
| Ultrasonic frequency | 37 kHz |
| Power consumption total | 2800 W |
| Ultrasonic power effective | 800 W |
| Ultrasonic peak performance max. | 3200 W |
| Heating power | 2000 W |
| Protection class | IP 20 |
| Unit outer dimensions | 715/570 / 467 mm |
| Tank internal dimensions | 600 / 500 / 300 mm |
| Basket internal dimensions | 545 / 450 / 250 mm |
The maximum filling volume of the tank is 90 liters (23.78 gallons).
The ultrasonic frequency is 37 kHz.
The temperature range is variable in 5°C steps from 30°C up to 80°C.
