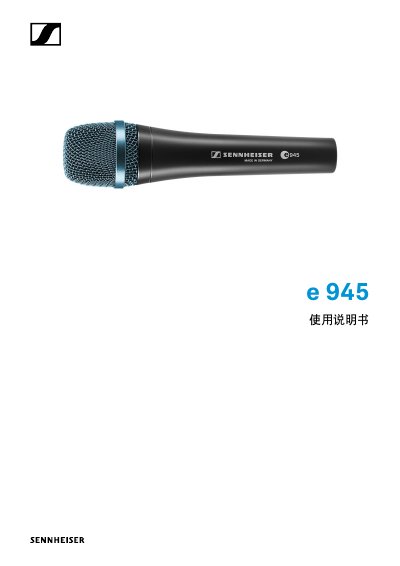

This manual provides installation, operation, cleaning, and technical specifications for the e e945 microphone.
The e e945 is a dynamic microphone with a supercardioid pickup pattern, designed for use with a stand mount. The document outlines the scope of supply, which includes the microphone, a clip, and a carrying bag, along with safety warnings regarding liquid exposure. This manual is written in Chinese.
| Transducer Principle | Dynamic |
|---|---|
| Frequency Response | 40 - 18.000 Hz |
| Pickup Pattern | Supercardioid |
| Sensitivity | 2,0 mV/Pa ±3 dB |
| Nominal Impedance | approx. 350 Ohm |
| Minimum Termination Impedance | 1 kOhm |
| Connector | XLR-3 |
| Operating Temperature | 0 °C to +40 °C |
| Dimensions | diameter 47 x length 186 mm |
| Weight | 365 g |
The microphone features a supercardioid pickup pattern.
Covering the microphone head changes the pickup characteristics and affects sound quality.
