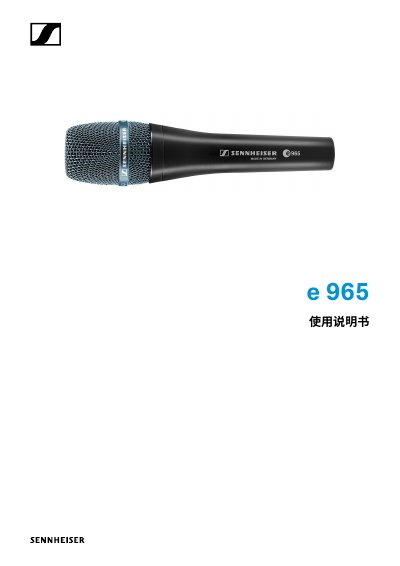

The e 965 microphone user manual provides installation, operation, cleaning, maintenance, technical specifications, and application overview.
This manual covers the complete supply scope of the e 965 microphone, including the microphone clip, optional accessories, safety tips, and a product overview with key features such as the XLR‑3 connector and selectable pickup patterns.\nIt details step‑by‑step installation, operation instructions, cleaning and maintenance procedures, technical parameters, and typical application scenarios for the e 965 microphone. This manual is written in Chinese.
| Diaphragm diameter | 25.4 mm / 1" |
|---|---|
| Frequency response range | 40 – 20,000 Hz |
| Pickup pattern | Cardioid / Super‑cardioid (switchable) |
| Nominal impedance (1 kHz) | 50 Ω |
| Maximum SPL (1 kHz) | 142 dB |
| Equivalent noise level | 21 dB(A) |
| Power requirement | 48 V / 3.5 mA |
| Dimensions | Ø 48 mm × 199 mm |
| Weight | 396 g |
| Operating temperature range | 0 °C to +40 °C |
The microphone offers cardioid (heart‑shaped) and super‑cardioid patterns that can be switched.
The microphone is designed to operate between 0 °C and +40 °C.
