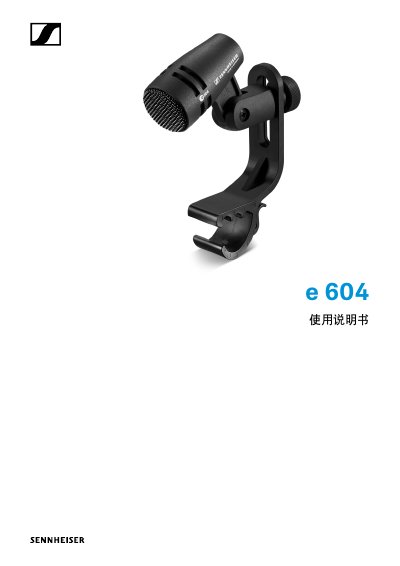

This manual provides installation, operation, maintenance, and technical specifications for the e e604 dynamic microphone.
The e e604 is a dynamic microphone designed for recording and live performances. The document outlines the scope of delivery, which includes the microphone, a stand, and a carrying bag. It details the installation process, specifically how to mount the microphone on a drum using the provided stand and cable connections. This manual is written in Chinese.
| Transducer Principle | Dynamic |
|---|---|
| Frequency Response | 40 - 18,000 Hz |
| Polar Pattern | Cardioid |
| Nominal Impedance | 350 Ohm |
| Minimum Termination Impedance | 1 kOhm |
| Connector | XLR-3 |
| Dimensions | Ø 33 x L 59 mm |
The delivery scope includes the e 604 microphone, a microphone stand (MZH 604), a microphone bag, and a brief description.
Position the microphone approximately 3 to 5 cm above the drum skin.
The e 604 operates within a frequency range of 40 - 18,000 Hz.
The unit weighs 60 g and measures Ø 33 x L 59 mm.
