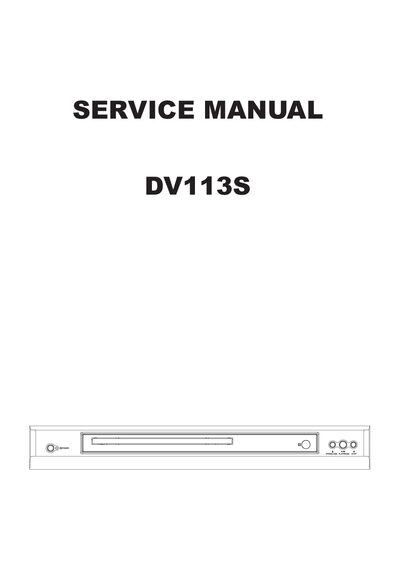

Service manual for the DV113S device with safety, ESD, assembly, testing and parts information.
The DV113S Service Manual provides detailed safety precautions, electro‑static discharge (ESD) prevention methods, and step‑by‑step instructions for assembling and disassembling the mechanism unit. It also includes electrical confirmation procedures, video output verification, and a complete parts list.
Additional sections cover the MPEG board waveform check, IC block diagram, schematic and PCB wiring diagrams, control button locations, and miscellaneous handling notes for the optical pickup and laser diode.
| Video Luminance Signal Level | 1000 mV p‑p ±30 mV |
|---|---|
| SOC Used | MediaTek MT1389 |
