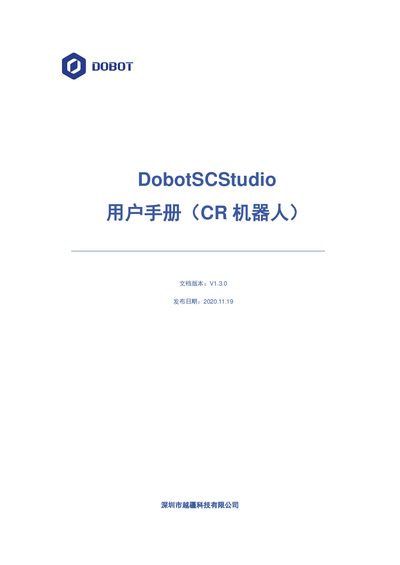

Dobot SCStudio User Manual for CR Series Robots

About this manual

Dobot SCStudio is a robot control software platform developed by Shenzhen Dobot Technology Co., Ltd. designed for the CR series of industrial robots. It provides a user-friendly interface supporting secondary development and includes various kinematic algorithms and a built-in virtual simulation environment for various process applications.

The manual covers the main interface layout, quick connection methods (direct cable or WiFi), and detailed functional descriptions. Key features include parameter settings for user and tool coordinate systems, I/O monitoring, remote control, and safety configurations. It also details the programming environment, including arithmetic, logical, and motion instructions, as well as Modbus communication protocols. This manual is written in Chinese.

What's inside

• Introduction
• Quick Connection
• Parameter Settings
• Tool Configuration
• Programming
• Motion Instructions
• Modbus Communication
• User Modes
• Safety Settings
• Alarm Information

Specifications

Frequently asked questions

What is the default password for the Administrator mode?

The default password is admin.

What is the default IP address for the control cabinet when connected via a network cable?

The default IP address for the control cabinet is 192.168.5.1.

What happens to the servo drive when the emergency stop switch is pressed?

Pressing the emergency stop switch cuts power to the control cabinet's servo drive, causing an immediate stop.
