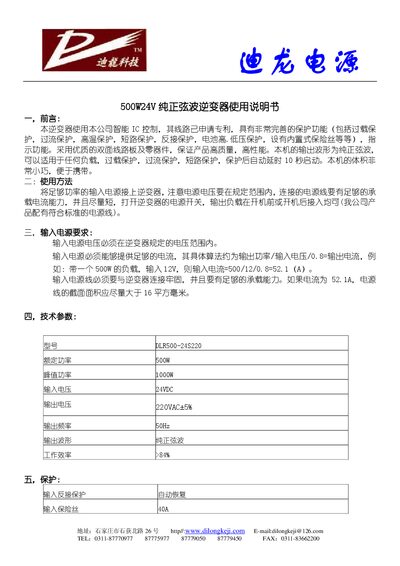

The Dilong DLR500-24S220 pure sine wave inverter user manual provides specifications, operation instructions, protection features, and troubleshooting.
This manual describes the Dilong DLR500-24S220 inverter, which uses an intelligent IC control circuit with multiple protection functions such as overload, over‑current, high‑temperature, short‑circuit, reverse‑polarity, and battery voltage protection. The output is a pure sine wave suitable for any load, and the unit is compact and portable.
The document covers connection methods, input power requirements, technical specifications, protection and status indicator details, operating environment, physical dimensions, safety precautions, and a troubleshooting guide for common fault conditions. This manual is written in Chinese.
| Model | DLR500-24S220 |
|---|---|
| Rated Power | 500W |
| Peak Power | 1000W |
| Input Voltage | 24VDC |
| Output Voltage | 220VAC ±5% |
| Output Frequency | 50Hz |
| Output Waveform | Pure sine wave |
| Efficiency | >84% |
| Operating Temperature | -20~40°C |
| Dimensions (L×W×H) | 244 x 166 x 62 mm |
