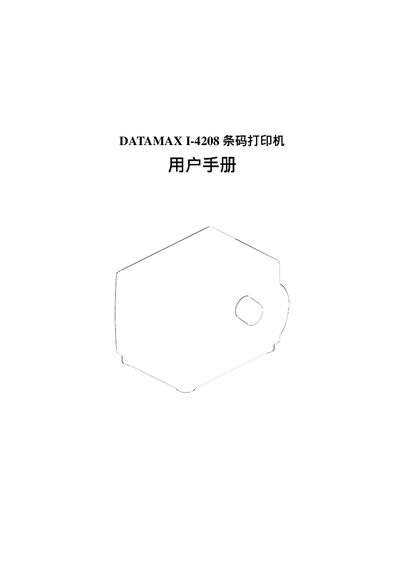

The DATAMAX I-4208 barcode printer user manual provides installation, operation, settings, diagnostics, and troubleshooting instructions.
This manual explains how to install the DATAMAX I-4208, including connecting the printer via serial or parallel cable, loading label rolls and ribbons, and configuring power settings. It also covers the control panel functions, LCD display messages, and the various reset procedures.
Additional sections describe media and print settings, communication options, diagnostic modes, and detailed performance specifications such as dimensions, speed, resolution, and supported interfaces. The troubleshooting chapter lists common error conditions and corrective actions. This manual is written in Chinese.
| Width | 12.62" (32.055 cm) |
|---|---|
| Length | 18.60" (47.24 cm) |
| Height | 12.70" (32.26 cm) |
| Interface Types | RS‑232, USB, IEEE‑1284 Parallel |
Use a serial or parallel cable; connect one end to the computer’s serial/parallel port and the other end to the printer’s matching port, then power on the printer.
Open the right‑hand cover, lift the print‑head lock, slide the label guide outward, place the label roll on the spindle with the paper facing up, feed it through the sensor, and close the cover.
The printer provides three reset methods: a software reset, a level‑1 reset, and a level‑2 reset, each performed with specific button combinations as described in the manual.
The printer measures 12.62" × 18.60" × 12.70", weighs 45 lb, operates from 40‑100°F, prints at 2‑8"/s with 203 dpi resolution, and supports RS‑232, USB, and parallel interfaces.
