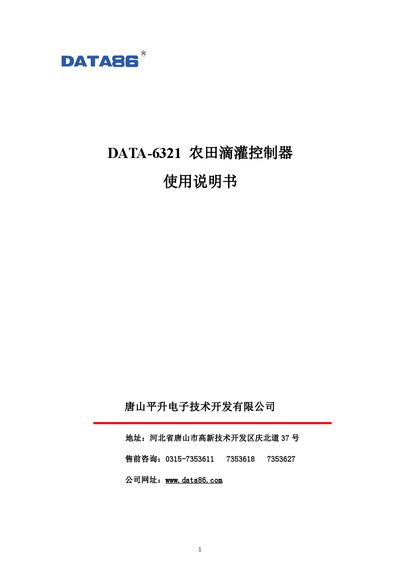

User manual for the DATA-6321 drip irrigation controller, covering installation, wiring, software setup and troubleshooting.
The DATA-6321 is a drip‑irrigation controller designed for agricultural fields. It provides automatic valve control, pressure/flow/soil‑moisture monitoring, and multiple wireless communication options such as GPRS, CDMA, SMS and satellite.
This manual includes product overview, installation steps, interface and wiring details, software installation and parameter configuration, remote upgrade procedures, and fault analysis with troubleshooting guidance. This manual is written in Chinese.
| Analog Input Channels | 2 (4‑20 mA / 0‑5 V, accuracy 0.5%) |
|---|---|
| Digital Input Channels | 12 (or 8 DI / 3 PI) |
| Digital Output Channels | 20 (collector output) |
| Serial Ports | 1 RS232, 1 RS485 |
| Storage Capacity | 4 M |
| Power Supply | 10 V ~ 30 V DC |
| Power Consumption | Standby <0.1 mA/12 V, average ≤10 mA/12 V |
| Dimensions | 145 × 100 × 65 mm |
| Operating Temperature | -40 °C ~ +85 °C, humidity ≤95 % |
