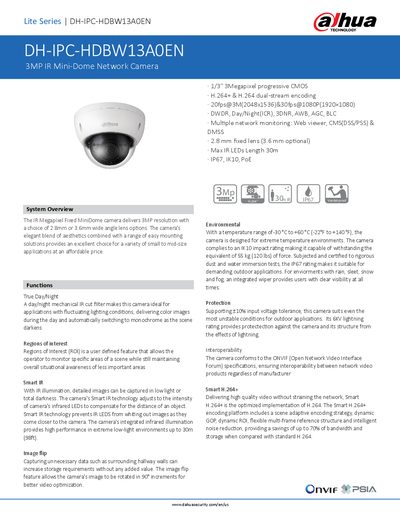

The Dahua DH-IPC-HDBW13A0EN is a 3 MP IR Mini‑Dome network camera with IP67, IK10 protection, 30 m IR range and ONVIF compatibility.
The DH-IPC-HDBW13A0EN Mini‑Dome camera delivers 3 MP resolution with optional 2.8 mm or 3.6 mm lenses, Smart IR technology and a day/night mechanical IR cut filter for reliable imaging in varying light conditions. It includes features such as ROI, image flip, privacy masking and integrated wiper for clear visibility in rain, snow or fog.
Technical specifications include a 1/3" progressive CMOS sensor, H.264+/H.264 dual‑stream encoding, up to 30 m IR illumination, IP67 and IK10 ratings, and a wide operating temperature range of –30 °C to +60 °C. The camera supports PoE (802.3af), up to 20 fps at 3 MP, and is ONVIF‑compliant for easy integration with third‑party video management systems.
| Image Sensor | 1/3" 3 MP progressive CMOS |
|---|---|
| Minimum Illumination | 0.1 Lux/F2.0 (Color), 0 Lux/F2.0 (IR on) |
| IR Distance | up to 30 m (98 ft) |
| Video Compression | H.264+/H.264 |
| Frame Rate | 3 MP 1‑20 fps, 2 MP 1‑30 fps |
| Power Supply | DC 12 V PoE (802.3af) Class 0 |
| Power Consumption | <5 W |
| Operating Temperature | -30 °C to +60 °C |
The camera’s IR LEDs can illuminate objects up to 30 m (98 ft) away.
The camera supports up to 10 or 20 concurrent users.
Yes, it conforms to ONVIF specifications for cross‑vendor compatibility.
