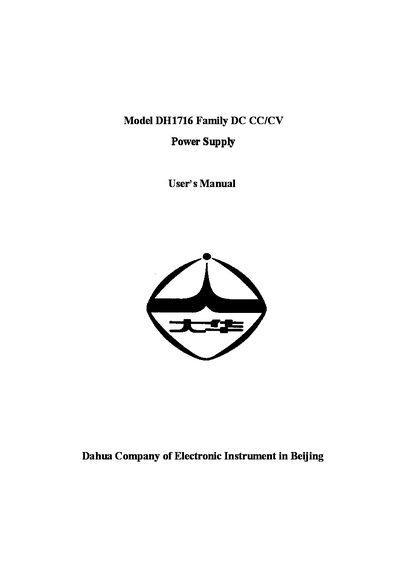

This manual introduces the usage, features and precautions of DH1716 model CC/CV power supply in detail. It can be used for users to read carefully before using.
The DH1716 family is a single‑channel DC power supply that provides CV/CC auto‑crossover operation with remote programming features. It includes over‑voltage and over‑temperature protection and can be linked in master‑slave series or parallel configurations.
The manual describes the front and rear panel controls, wiring, operation modes, safety precautions, and troubleshooting steps, as well as the complete list of accessories supplied with the unit.
| Output Voltage Range | 0~36 V (DH1716‑1), 0~62 V (DH1716‑2), 0~103 V (DH1716‑3), 0~13 V (DH1716‑4) |
|---|---|
| Output Power | 700 W |
| Apparent Power Consumption | 2.3 kW at 242 V |
| Actual Power Consumption | ≈1.2 kW |
| Over‑voltage Protection Voltage | 5.5 V ~ 40 V adjustable |
| Meter Accuracy | 2.5 % (digital meter) |
| Indication Accuracy | 1 % + 2 counts |
| Dimensions (DH1716‑3/4) | 230 mm × 160 mm × 550 mm |
| Weight (DH1716‑3/4) | ≈30 kg |
The unit delivers an output power of 700 W.
The power supply requires a warm‑up time of 15 minutes.
The over‑voltage protection can be set between 5.5 V and 40 V.
Both models measure 230 mm × 160 mm × 550 mm.
