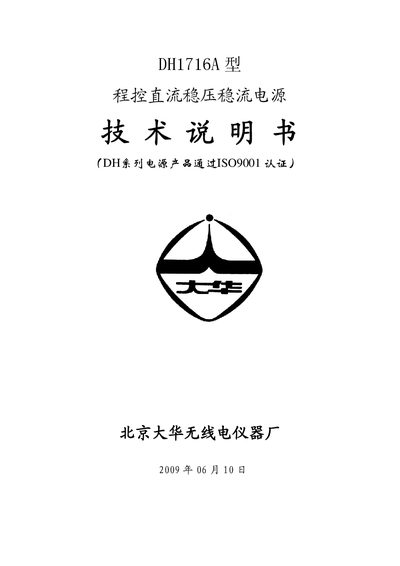

The Dahua DH1716A programmable DC power supply manual provides overview, technical specs, operation instructions, troubleshooting and RS‑232 remote control…
This manual describes the DH1716A series programmable DC power supply, a single‑channel unit with local and optional remote RS‑232 control. It outlines the product’s features such as voltage and current regulation, protection functions, and calibration capabilities.
The document includes panel layouts, key functions, step‑by‑step operation procedures, safety notes, fault repair guidance, and detailed RS‑232 command syntax for remote voltage, current, and protection settings. This manual is written in Chinese.
| Maximum current adjustment range | 0 A ~ 50.5 A |
|---|---|
| Input AC voltage | 220 V ± 10 % |
| Power frequency | 50 Hz ± 2.5 Hz |
| Dimensions (no frame) | 440 mm × 175 mm × 500 mm |
| Weight (example model) | ≈ 39 kg |
