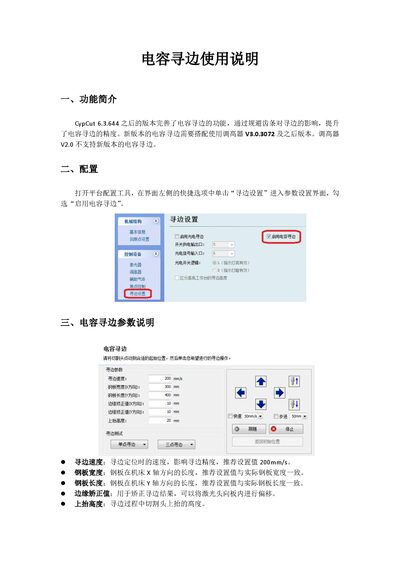

This manual explains how to use the capacitive edge detection feature in CypCut 6.3.64, covering configuration, parameters, and single‑ and three‑point…
The capacitive edge detection function in CypCut version 6.3.64 improves edge‑finding accuracy by avoiding the influence of rack teeth. It requires a controller V3.0.3072 or later; earlier V2.0 controllers are not supported.
The guide describes how to enable the feature, set key parameters such as detection speed and steel‑plate dimensions, unlock advanced options for rack‑avoidance, and perform both single‑point and three‑point edge‑detection processes. Safety and setup precautions are also provided. This manual is written in Chinese.
| Edge detection speed | 200 mm/s (recommended) |
|---|---|
| Steel plate width | Set to match actual plate width |
| Steel plate length | Set to match actual plate length |
| Rack interval | Distance between adjacent racks |
| Rack tooth pitch | Distance between adjacent rack teeth |
| Rack installation direction | Relative position of rack to machine |
| Rack installation method | Recommended: staggered installation |
The recommended speed is 200 mm/s.
It requires a controller version V3.0.3072 or later; V2.0 does not support the feature.
The process uses three points (A, B, and a third point) to determine the edge.
Yes, you can enable rack‑avoidance and set rack interval, pitch, direction, and installation method after unlocking advanced parameters.
